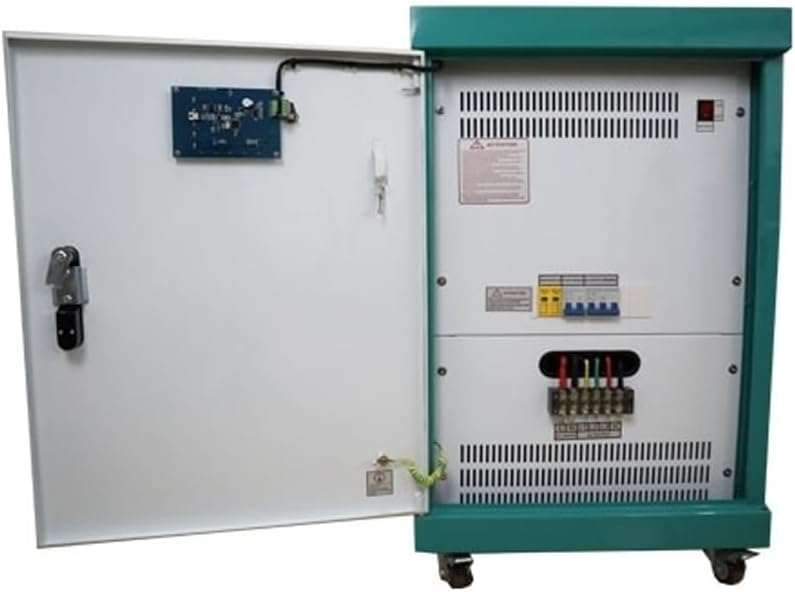

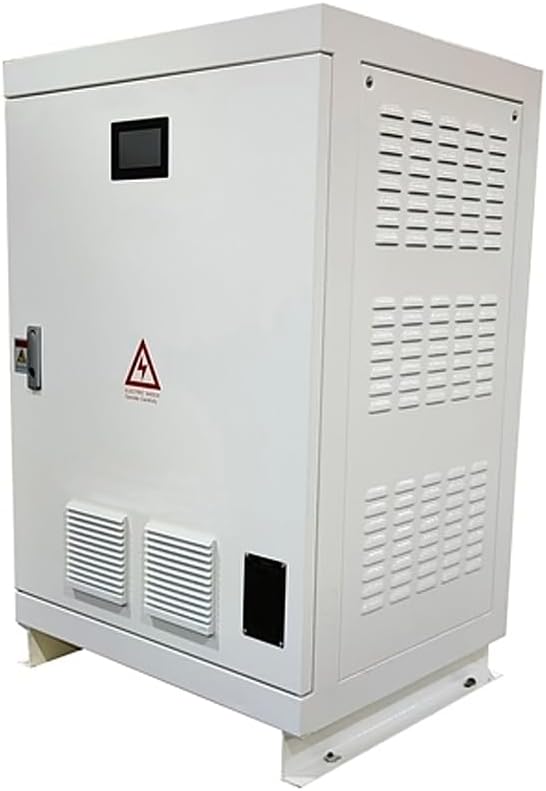

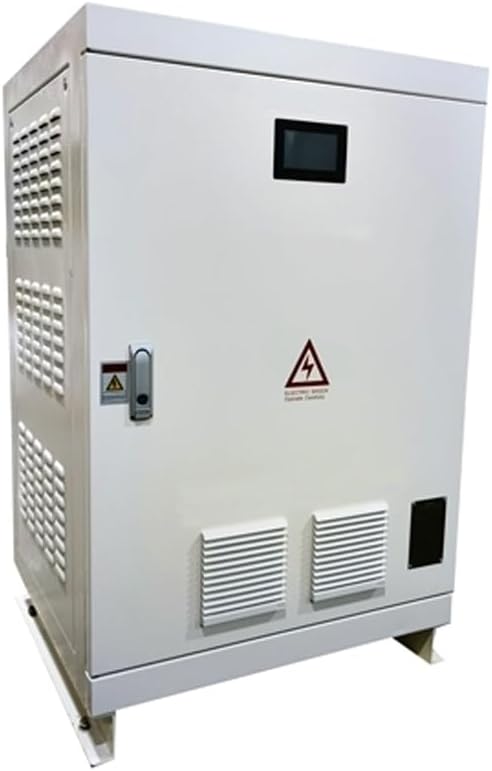

ATO 20HP Single Phase to Three Phase Converter, Single Phase 480V 60Hz to 3 Phase 480v 60Hz, 15kW Static Phase Converter with LCD/LED Display, Pure Sine Wave IPM SVPWM Industrial Power Converter

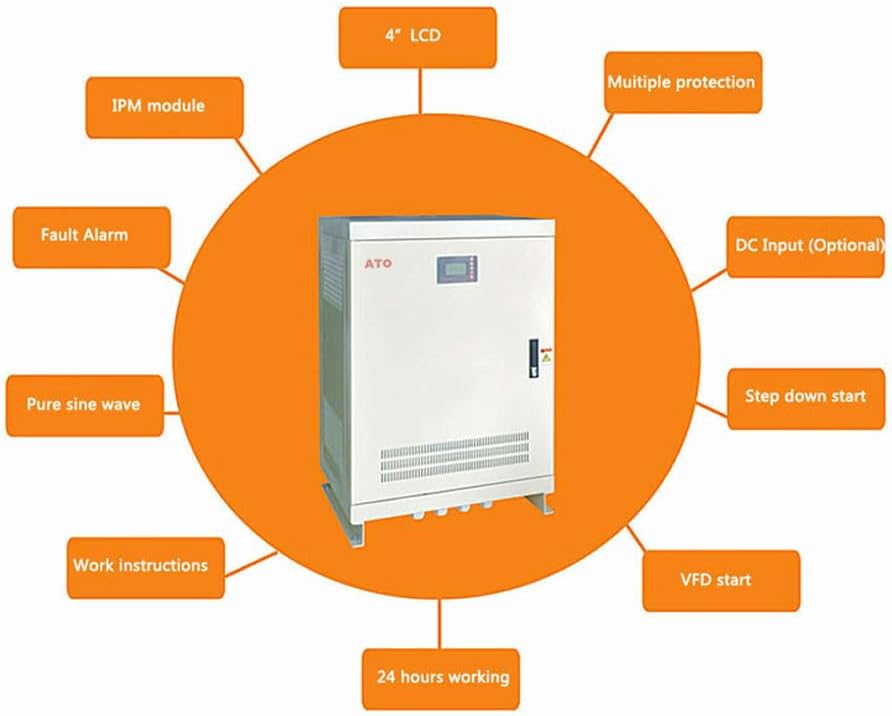

ATO 20 HP Single Phase to Three Phase Converter is engineered for users who need reliable 3-phase 480V power when only a single-phase 480V 60Hz supply is available. Powered by a high-performance IPM module with SVPWM modulation, this converter delivers a clean pure sine wave output suitable for a wide range of industrial and commercial equipment.Specification:Model: ATO-BZT-15kWPower : 15 kWCircuit Mode: IPM module, SVPWM modulationOutput Waveform: Standard pure sine waveWide Voltage Input: 80-320V AC (can customization)Input Voltag: 480 AC single phase 2 wireOutput Voltage: 480V AC 3 phase 4 wire+PEInput Frequency: 60HzOutput Frequency: 50Hz/ 60HzStartup Mode Selection: Stable frequency step-down start or frequency start (can be selected on the LCD screen settings)Frequency Stability: ≤0.01%Load Regulation: ≤3%THD: ≤2% (Linear load)Phase Angle: 120°±1°Crest Factor Ratio 3:1Weight: 170kgLCD Display: Output voltage, output current, output frequency, output power, fault code, time temperature, startup mode selection, setting parametersProtection: Input under voltage, overvoltage, output over-current, short circuit, overheating etc.Protective Reaction Time: ≤2msMachine Efficiency: ≥94%Insulation Properties: 1800V AC/ 10mA/1 minInsulation Impedance: 500V DC/ 50MΩCooling Method: Forced air coolingNoise: 1m> 60dBAmbient Temperature: -25℃~+55℃Humidity: 0~95% (No condensation)Size: L: 540mm; W: 540mm; H： 760mm

Features & Specs

• Power Source : AC Power Source
• Voltage : 480 Volts
• Wattage : 15 KW

Item details

• ASIN : B0G6L262F1
• Brand : ATO
• Built-In Media : 1*Single Phase to Three Phase Converter
• Manufacturer : ATO
• Warranty Description : 1 year
