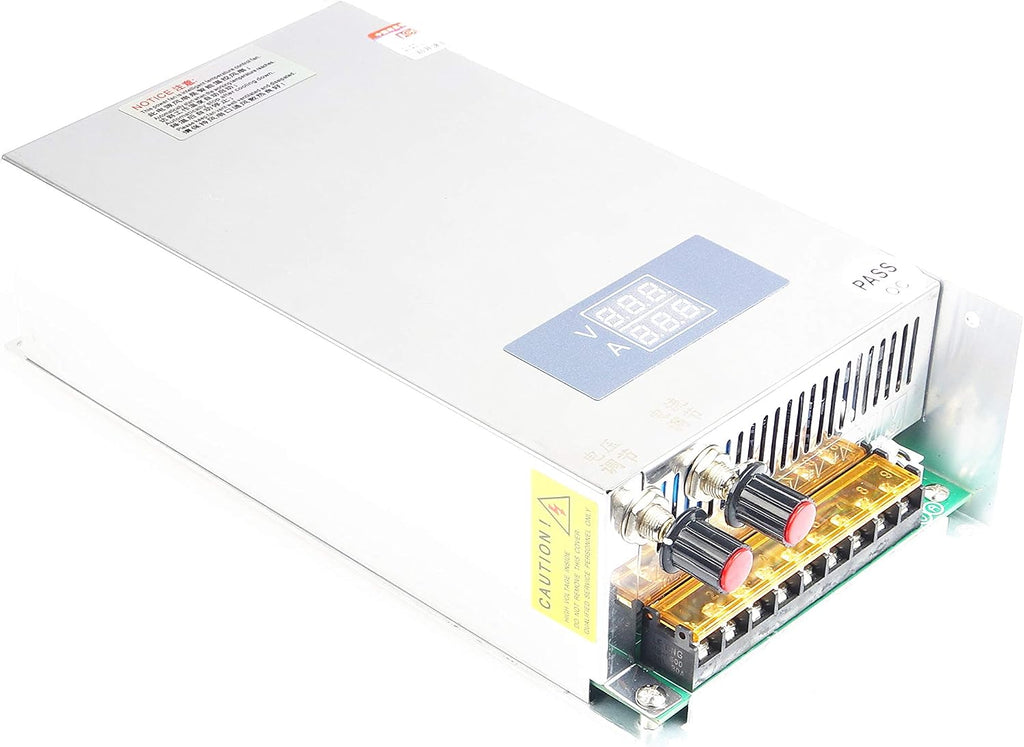

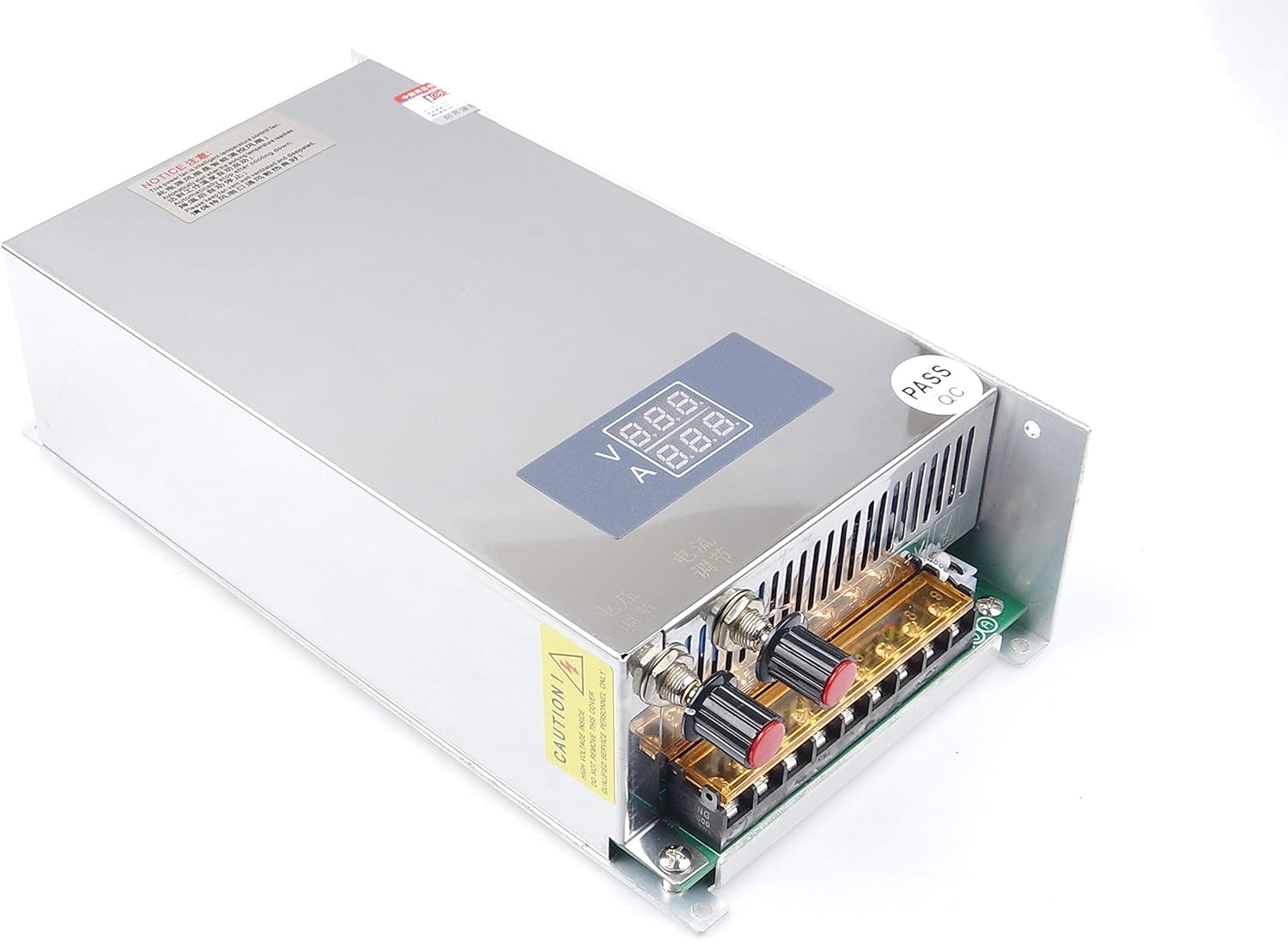

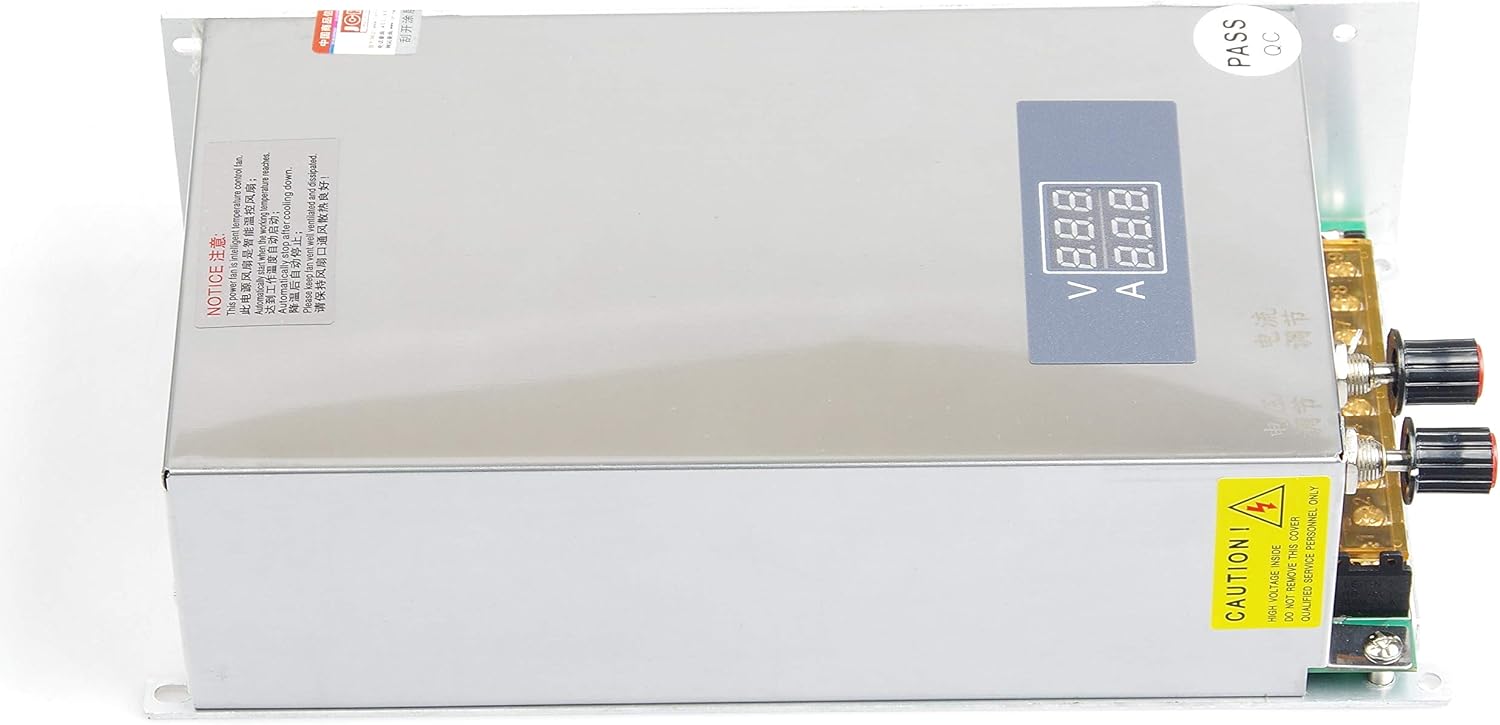

Adjustable DC Power Voltage Converter AC 110V to DC 0-24V 0-42A Module

Adjustable DC Power Voltage Converter AC 110V to DC 0-24V 0-42A Module 24V 42A Switching Power Supply Digital Display 1000W Voltage Regulator Built in Cooling Fan (0-24V 0-42A)

$74.83 $199.99

DC Output Voltage:0 - 24V adjustable;
Output Current:42A;
Incoming wire stability:±5%;
Ripple and noise :180mVp-p;
Efficiency:>85%;
AC input voltange range: AC 110V(90V-132V AC) .

AC input current :8.5A/110V ;

Overload protection: 105%-150% cut off output;
Reset: Self reset;
Start,Rise,Hold time:200ms,50ms,30ms;
Operating temperature: -10 ℃ - +50 ℃;

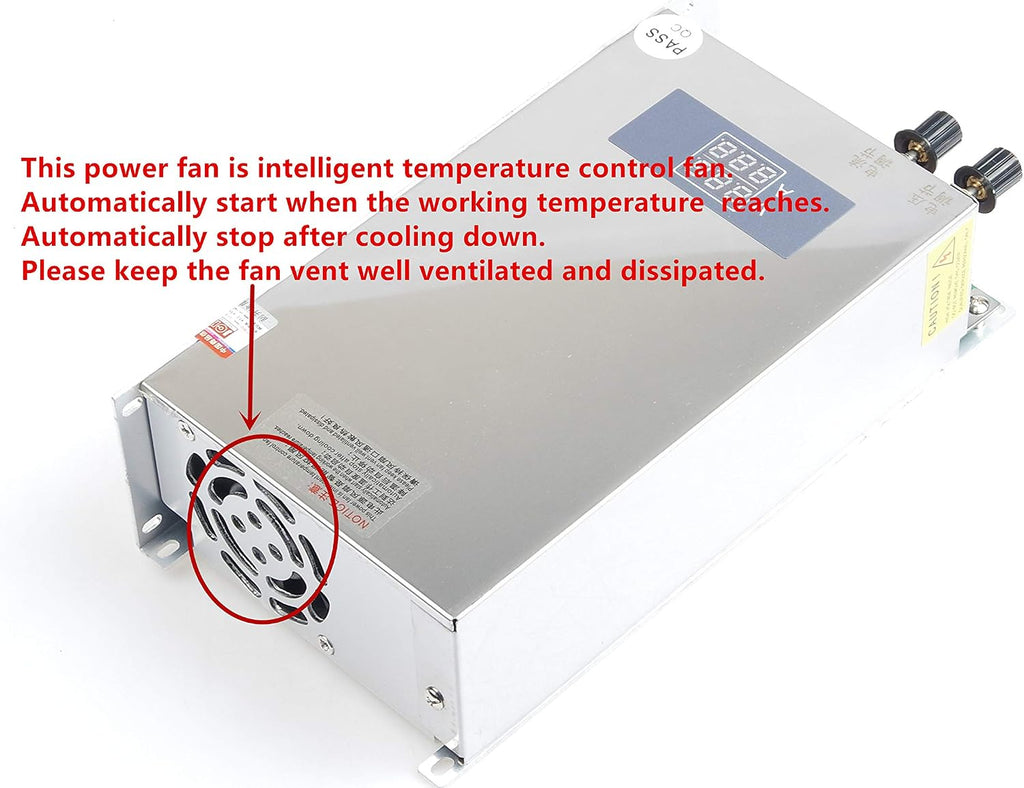

Power fan working temperature: 40 ℃ ± 5 ℃.
Working humidity: 20% -90% RH
Dimensions: 240 * 124 * 65mm / 9.45 * 4.88 * 2.56in (L * W * H);
Weight: 1.5KG / 2.43lb.
In-door use only, for this switching power supply is not waterproof.

Use and precautions:
1. Before inputting the voltage, make sure that the input voltage is in line with the operating voltage of the power supply. The wrong input voltage will damage the power supply
2. Pay attention to positive and negative, do not reverse.

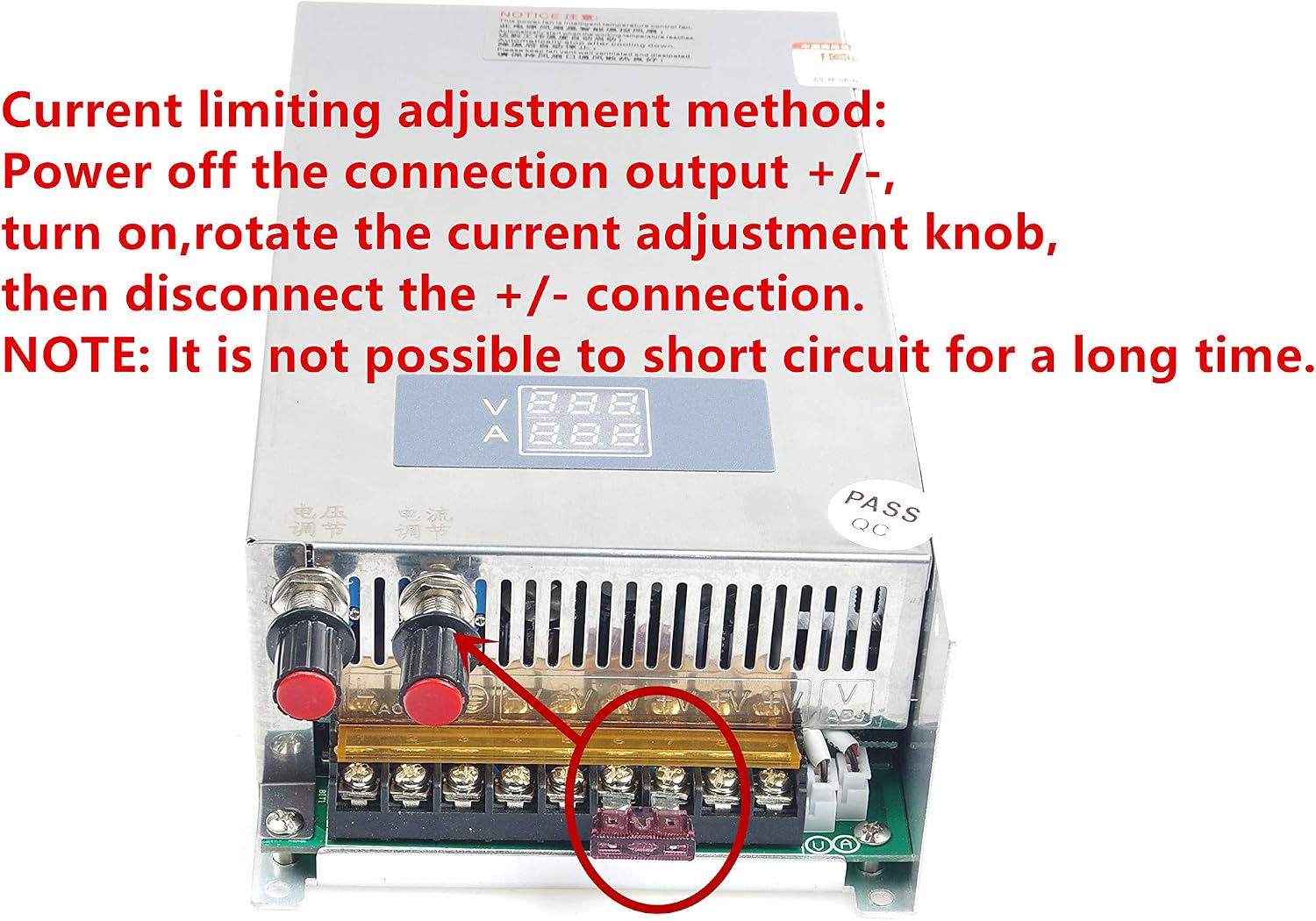

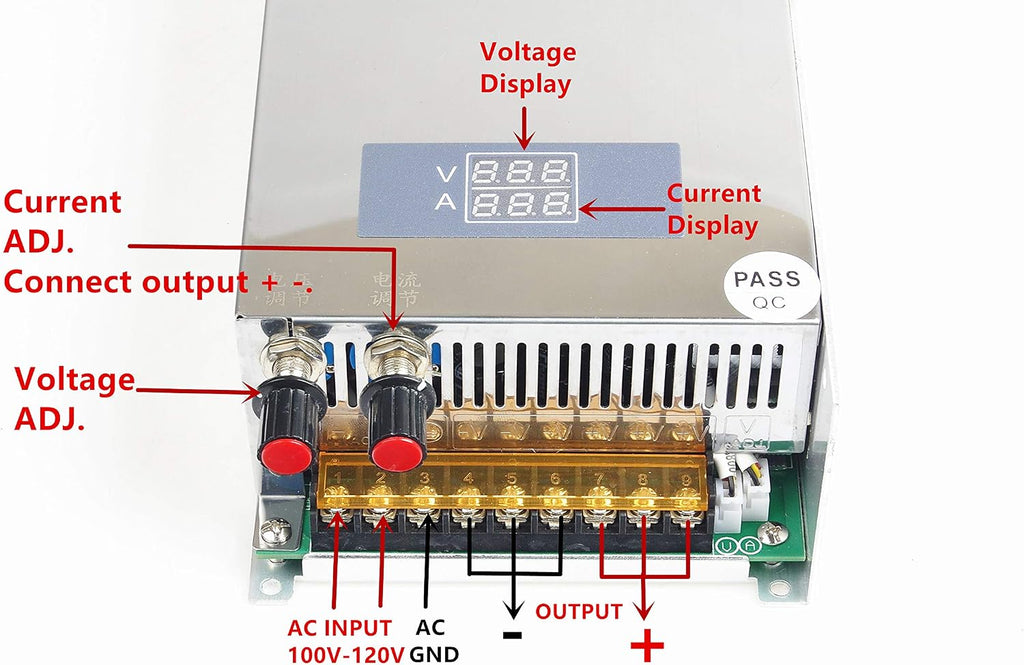

3. Output voltage 0-100% continuously adjustable, with digital output display; output current is not adjustable, limit the highest value; so in the choice, please according to the actual needs.
4. The internal components of the power supply are the best quality, the factory has to undergo a rigorous test, non-general cheap power supply comparable. Can be used for high-end industrial equipment power supply.
Package Included:
1*DC Adjustable DC Switching Power Supply
